Is Delidding a Used CPU Worth It in 2026? Direct-Die Cooling, Liquid Metal & Risks Explained
Advertisement

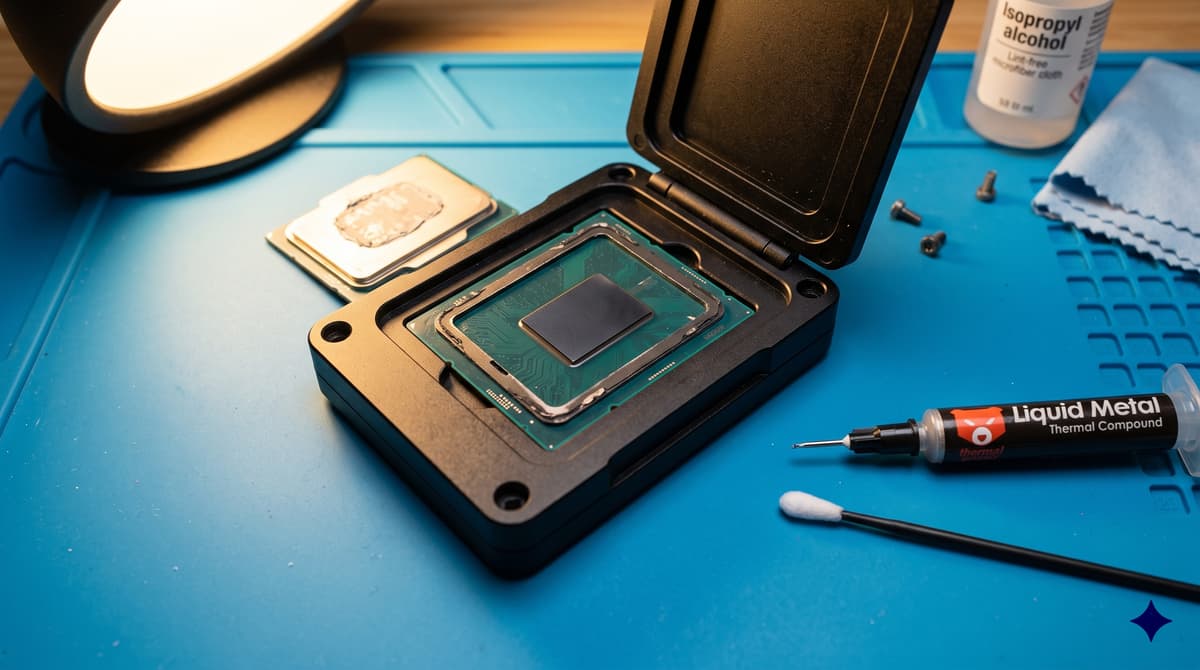

For extreme PC hardware enthusiasts and silence obsessives, delidding—the mechanical process of popping the nickel-plated copper Integrated Heat Spreader (IHS) off a desktop processor to replace the factory solder or paste with Gallium-based liquid metal—is the Holy Grail of thermal tuning. On modern hot-running chips like the Intel Core i9-13900K or AMD Ryzen 9 7950X, direct-die contact can drop core temperatures by an astonishing 18°C to 24°C.
However, on the UK second-hand market, buying a pre-delidded processor or attempting the procedure yourself carries catastrophic risks: cracked silicon dies, severed substrate SMD capacitors, and instant voiding of all warranty coverage. Is the 20°C drop worth the danger in 2026? Here is the honest engineering breakdown.
1. The Temperature Reality: Solder vs Liquid Metal
| CPU Architecture | Factory Interface | Delid Temp Drop | Risk Level |
|---|---|---|---|
| Intel 12th/13th/14th Gen LGA1700 | STIM (Indium Solder) | -16°C to -22°C | Moderate (Thick Substrate) |
| AMD Ryzen 7000 / 9000 (AM5) | Gold-Plated Solder | -18°C to -25°C | Very High (Exposed SMD Capacitors) |
| Intel 8th/9th Gen (i7-8700K / 9700K) | Cheap Factory Paste | -14°C to -18°C | Low (Easy Razor / Tool Pop) |
2. The Dangers of Delidding
Liquid metal (Thermal Grizzly Conductonaut) is 100% electrically conductive. If a micro-droplet squeezes out and bridges the tiny SMD capacitors surrounding an AM5 or LGA1700 die, the motherboard will short out upon boot, destroying both CPU and socket instantly. Enthusiasts must seal SMDs with conformal coating or thermal lacquer.
Because modern Intel and AMD CPUs use soldered heat spreaders, delidding requires pre-heating the CPU to 160°C in a specialised delidding tool (like the Thermal Grizzly Delid-Die-Mate). Attempting to shear cold Indium solder will rip the top silicon layers straight off the processor substrate.
The Verdict for Everyday Gamers
For 99% of PC gamers, delidding is an unnecessary hazard. A high-performance £30 dual-tower air cooler or a 240mm liquid cooler provides more than enough thermal dissipation. Leave delidding to competitive overclockers.
